Hardware Solution

฿ 6000

InGauge USB is the ultimate technology to convert the signal from digital measuring instruments to the form of communication via SPC connector and convert the numerical signal to the computer system.

Version 2.2
Created by : Inspektion Co.,Ltd.

InGauge Accessories

USB Cable: USB 2.0 Type A Male to Type B Male Cable 1.8 meter
Foot Switch: XLR 3 Pin 12 mm Header Cable Length 2 Meter
Digimatic Cable: Digimatic SPC Cable Type F Male to IDC 10 Male 1 Meter

InGauge Quick Setup

Connect the Digimatic SPC Cable Type F Male to IDC 10 Pin Male to the Digimatic SPC port.
Connect the USB 2.0 Type A Male to Type B Male Cable to the USB Type B port.
Connect the USB 2.0 Type A Male to Type B Male Cable to the computer.
Connect the Foot Switch to the Foot Switch port.
Turn on the InGauge USB and notice the Power LED light up.
Wait until the Status LED light turns on.
Press the Foot Switch to send data from the Digital Gauge to the computer
Notice the Transmission LED light up.

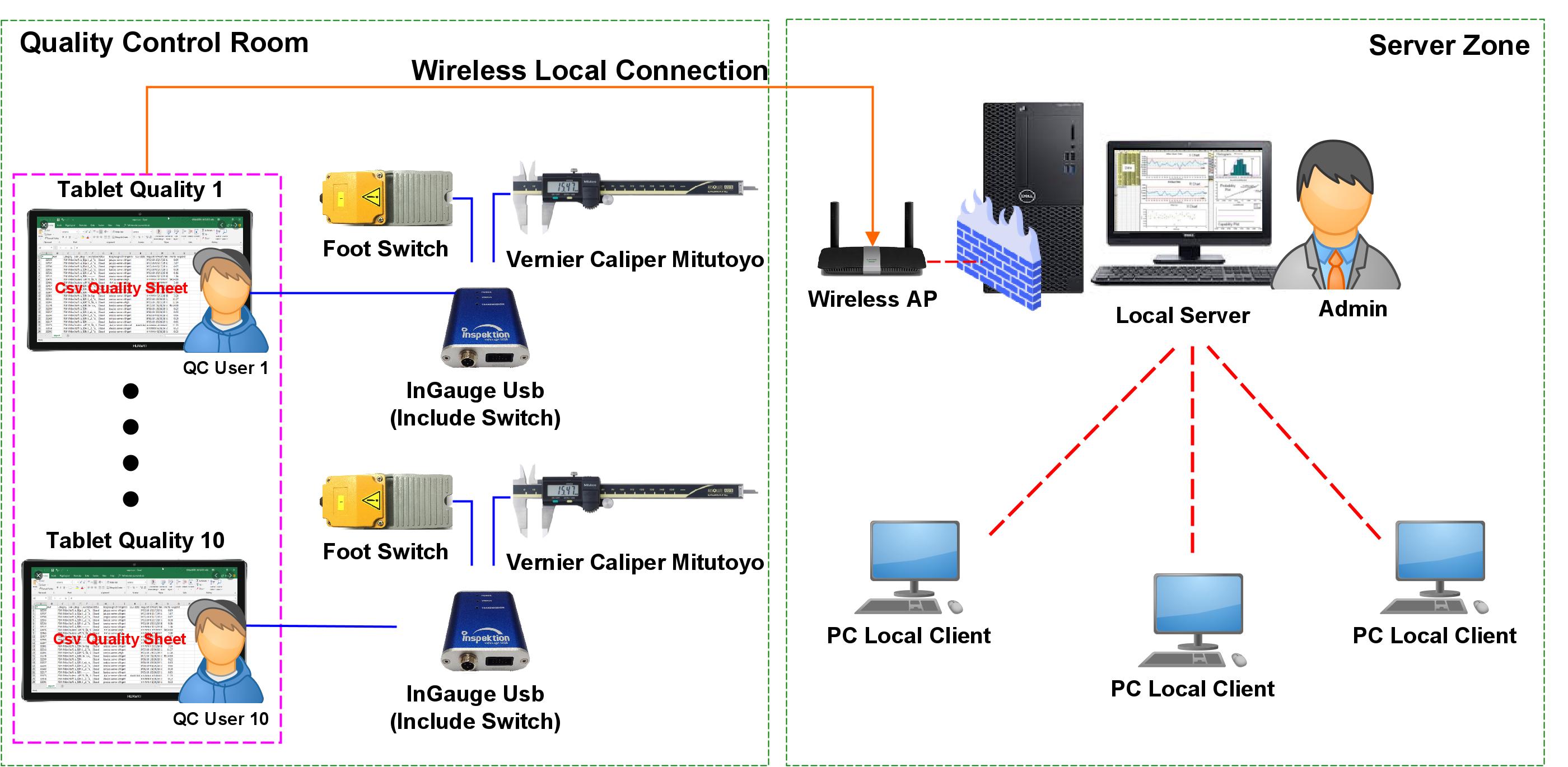

InGauge USB can connect to various digital measuring tools such as vernier calipers, calipers, micrometers, height gauges, thickness gauges, bore gauges, and other measuring tools with a Digimatic Output port. InGauge USB converts measurement data from these digital measuring tools into keyboard signals that the computer can read and record immediately. This allows the data to be used in various programs such as Excel, SPC software, or other programs as needed.

In addition, InGauge USB also works with Windows, Linux, OSX, Android (OTG), and other operating systems that support USB keyboards. It is powered by USB, has LED lights indicating Power, Status, and Transmission, and the device is made of factory-grade aluminum with a USB2 type B port, XLR connector, and accessories.
